Vacuum Cleaner Floor Head for Ducted / Central Vacuum Systems

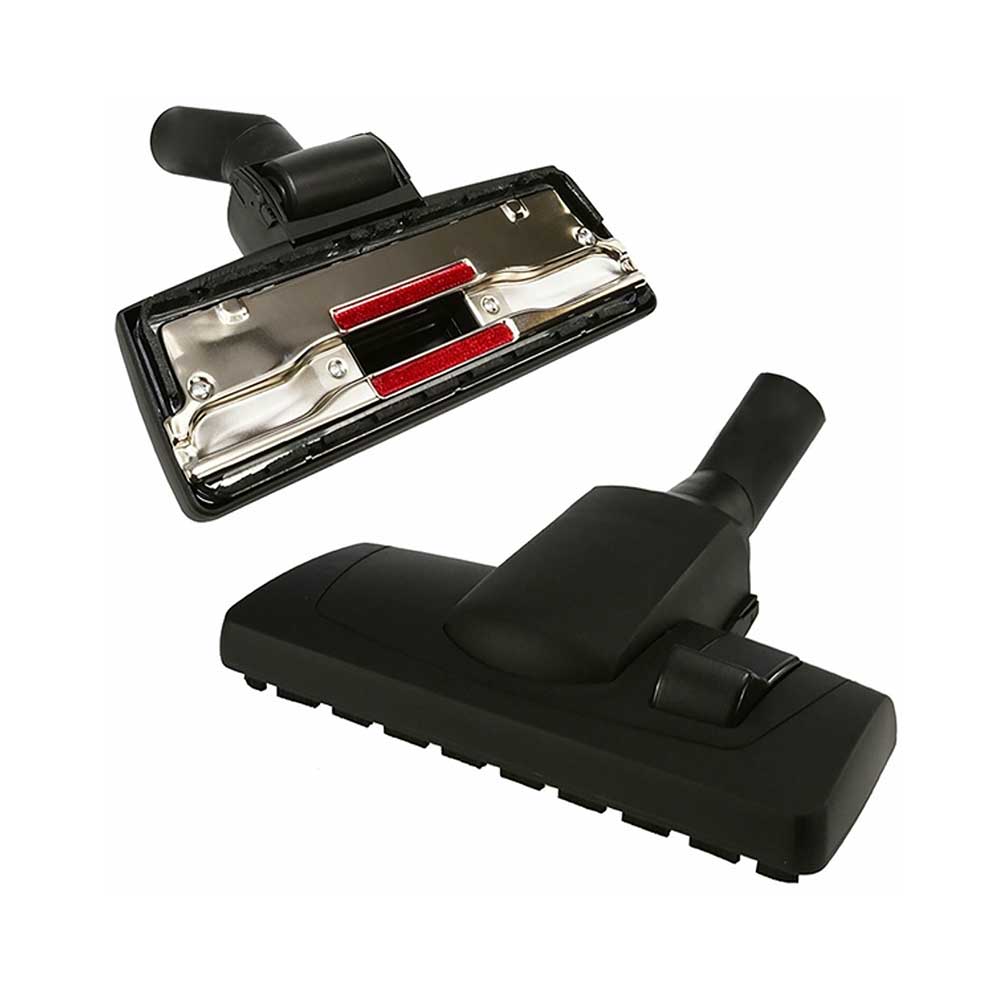

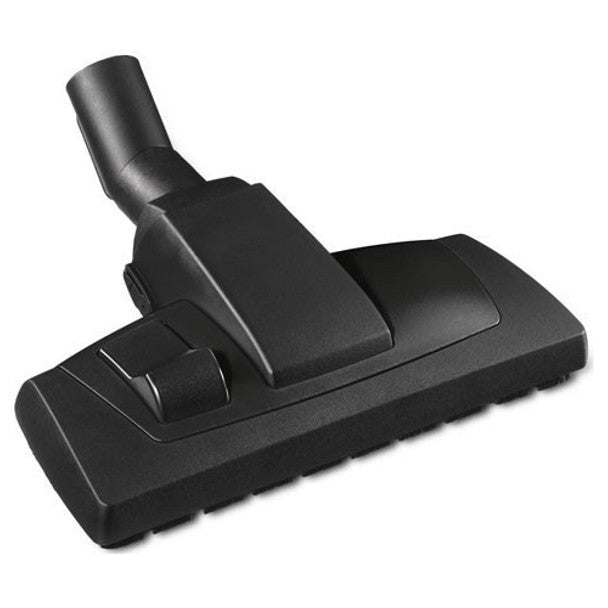

32mm Combination Floor Head for Ducted Vacuum Systems

This 32mm combination floor head is a universal replacement attachment for residential central vacuum systems. It is built with a 32mm internal diameter neck designed for a tapered friction-fit connection. The tool features a pedal-operated brush strip that manually extends for hard floor surfaces and retracts for carpets.

How This Vacuum Tool Improves Performance

Using this ducted vacuum floor tool provides a multi-surface cleaning solution for homes with both carpet and hard floors. The large rear roller assists in maintaining a consistent height on rugs, while the retractable bristles lift the plastic baseplate off floorboards to prevent direct contact. It serves as a replacement for worn-out floor heads that have lost their bristle density or have damaged wheels.

Ducted Vacuum Floor Tool Features

• Dual-Surface Pedal: A mechanical foot switch that extends a nylon brush strip for tiles and timber; retracts it for carpets and rugs.
• Standard 32mm Neck: A tapered friction-fit connection (32mm diameter) that creates a seal on round ducted vacuum wands.
• Large Rear Roller: A wide wheel designed to assist with smooth movement across carpeted surfaces.
• Synthetic Lint Pickers: Dual fabric strips located on the baseplate for the collection of hair and lint.

Will this 32mm floor head fit my ducted vacuum?

This tool is for users with a central vacuum system who need a single head for mixed flooring. It is suitable for those experiencing suction-lock with flat heads or for users whose original head is no longer gliding correctly. This part is compatible with 32mm round wands used by standard ducted vacuum systems. Verified brands commonly using this fit include:

• Valet
• Aussie Vac
• Premier Clean
• Silent Master
• Husky
• Hills
• Electron
• Monarch
• Pullman
• Cleanstar
• Imperial

What does this vacuum head not fit?

This attachment is specifically designed for 32mm diameter round wands. It will not work with the following configurations:

• 35mm Wands: This head is too small for wands with a 35mm diameter, which are frequently used by brands like Bosch or Miele.
• Power-Pin Connections: It is not compatible with specialised motorised wands that feature electrical pins to power an electric brush bar.

Why is my vacuum head hard to push?

If you are finding your current tool difficult to move, it is often caused by one of these factors:

• Suction Seal: High-suction central vacuum power units can create a vacuum seal against the floor. This head uses an integrated large rear roller to maintain a small gap and allow for a smoother glide.
• Debris Build-up: Hair or thread tangled in the roller or lint pickers can increase friction.
• Worn Bristles: If the hard floor brush strip is worn down, the plastic baseplate may be dragging directly on the floor surface.

Installation and Troubleshooting

• Fitting: Push the 32mm wand firmly into the neck of the floor head. A slight twist creates the friction seal.
• Pedal Usage: Press the pedal down for hard floors. Pull the pedal up for carpets.
• Troubleshooting: If the head is difficult to push, check the rear roller for tangled hair. Ensure the lint pickers are clean to maintain optimal airflow.

Convenient Pedal: Easily raise or lower the Brush for different floor types.
large Wheel Base: Reduces strain and Ensures smooth movement.
Durable Construction: Made from sturdy ABS plastic for longevity.
Effortless operation: provides a smoother and more efficient cleaning experience.
