Turbo Head for Miele Vacuum Cleaners | TuboTeQ STB 305-3 Alternative Turbo Brush

This Miele Replacement Turbo Brush is a high-velocity, air-driven floor head designed for Miele canister vacuums. Engineered with a fast-spinning turbine brush bar, it facilitates deep debris extraction from low-to-medium pile carpets and area rugs. This part is a cost-effective aftermarket alternative to Miele Part Number STB 305-3 (TurboTeq)

Compatible Miele Vacuum Models

This tool features the specific locking connection (click-lock button) required for a secure fit on the following series:

• Complete Series: Fits all C2 and C3 models (e.g., Cat & Dog, Comfort, Limited Edition).
• Compact Series: Fits all C1 and C2 models.
• Classic Series: Fits C1 models.
• Bagless Series: Fits all Blizzard CX1 and Boost CX1 models.
• S-Series Archive: Compatible with S2, S4, S5, S6, and S8 series (e.g., S5211, S8340).

Important: Models This Tool Does NOT Fit

This head uses the standard Miele click-lock canister connection. It is incompatible and will not fit the following models:

• Miele Triflex Range (HX1 & HX2): These cordless stick vacuums use a proprietary electrical connection that does not accept canister tools.
• Miele Duoflex Range: These newer cordless models use a unique connection port incompatible with 32mm click-lock tools.
• Miele Upright Vacuums: Specifically the S7000 and Dynamic U1 series, which use an integrated hose system.
• Non-Locking Wands: It will not fit very old Miele models or other brands that use simple friction-fit (push-on) wands without the square locking hole.

Why a Turbo Brush Improves Cleaning Results

Standard floor heads rely on suction alone, which often fails to lift hair trapped in carpet fibres. A suction-powered turbo head solves three primary performance issues:

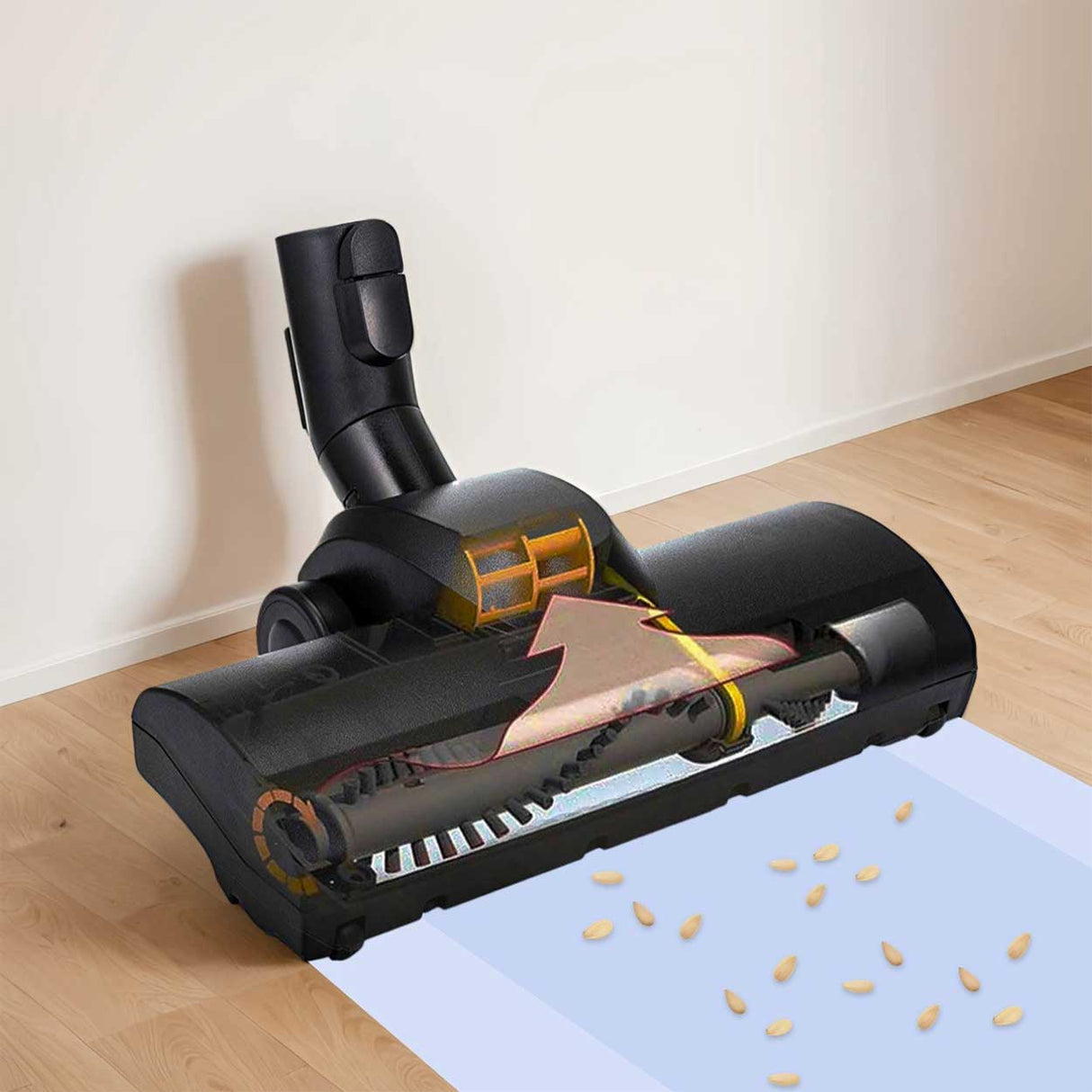

• Mechanical Agitation: The internal turbine uses the vacuum’s airflow to spin the brush bar, physically beating the carpet to release embedded dust and dander.
• Superior Hair Removal: Stiff nylon bristles are specifically designed to catch and lift long human hair and pet fur that flat nozzles typically miss.

Expert Insights: When to Use This Attachment

Professional cleaners and technicians recommend air-driven turbo heads for specific floor types where standard tools underperform:

• Low-to-Medium Pile Carpets: The standard choice for wool or synthetic carpets where a motorised head is too aggressive.
• Area Rugs & Mats: Because it is air-driven, the brush slows down if it hits a fringe, reducing the risk of damaging delicate rugs.
• Homes with Pets: A dedicated tool for high-traffic rugs to lift stubborn fur that standard suction cannot extract.

Installation and Maintenance Guide

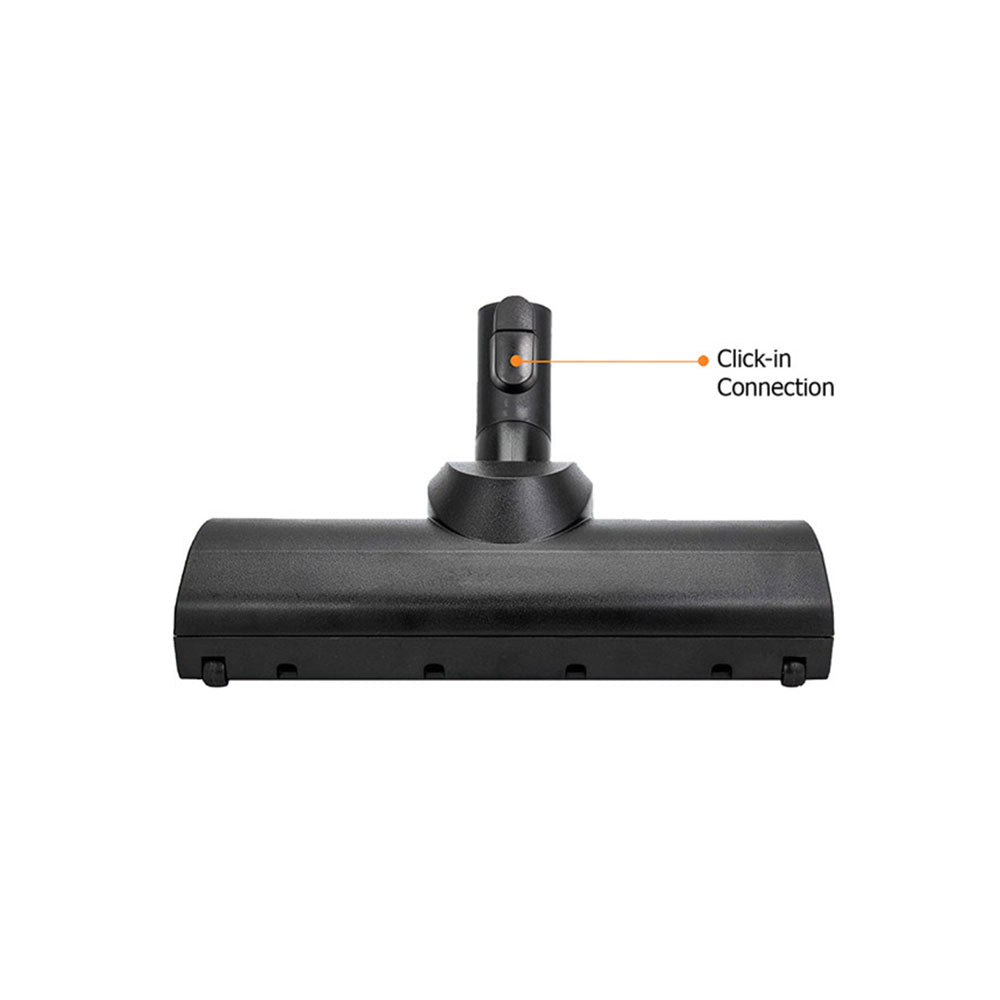

• Installation: Align the tool with the Miele wand and push until the locking button clicks into the catch. To remove, press the release button and pull.
• Brush Maintenance: Check the roller every few weeks. Use scissors to cut away hair or threads wrapped around the brush to prevent the turbine from stalling.
• Blockage Prevention: If the brush stops spinning, check the suction inlet for large debris (like coins) that may be obstructing the internal fan.

Frequently Asked Questions

• Q. Will this head fall off my vacuum wand like other universal tools?
• A. No. This tool is engineered with the Miele-specific locking system. It features the square hole catch that clicks onto the locking button of your Miele wand, ensuring it remains securely attached during use.
• Q. Why does the brush stop spinning when I move onto my thicker carpet?
• A. This is a physical limitation of air-driven heads. Because the brush is powered by suction (a turbine), high-pile or "shaggy" carpets create too much resistance for the air to overcome.
• Q. What does the slider on top of the turbo head actually do?
• A. This is a suction bypass valve. Opening the slider allows air to enter from the top, which reduces the suction grip on the floor and prevents the head from sealing against the carpet. This is used to maintain brush rotation on dense carpets or to protect delicate area rugs.

- Suction-Powered Turbine:
Operates at high RPMs using your vacuum’s airflow, requiring no electrical cords or specialized power wands.
- High-Speed Brush Roller:
Designed to spin faster than standard universal heads to effectively lift deeply embedded pet hair and fine grit.
- Multi-Surface Versatility:
Safe for use on short and long-pile carpets as well as hard floors including tiles, vinyl, and timber.
- Protective Front Rubber Strip:
Integrated bumper prevents dust from being flicked forward on hard floors and protects skirting boards and furniture from scuffs.
- Easy-Glide Wheels:
Features smooth-rolling wheels to reduce user strain and ensure consistent movement across various floor textures.
- Miele Click-Lock Fitment:
Built with the specific square locking hole to ensure a secure, airtight connection to your Miele wand.

Classic Series: S241 - S256i, S290 - S299, S300 - S399, S600 - S658, S500 - S578, S700 - S799, S800 - S858
Complete Series: S2000 - S2999, S4000 - S4999, S5000 - S5999, S6000 - S6999, S8000 - S8999, Compact C1, Compact C2, Complete C2 (all models), Complete C3 (all models)
Other Models: Miele Blizzard CX1, Miele Boost CX1
Examples of Compatible Models:

S247, S247i, S247i Arctic White, S248, S248i, S251, S251i-1, S255, S255i, S256, S256i SEB 217-2, S217, Black Diamond, S291, S291-2
S301, S311, S311i, S311i-1, S312, S312i Festival, S312, S312i Tri-Colour, S316 Cat Dog, S318 MediVac, S318
S324, S326, S326i, S326i Cat & Dog, S336, S344, S381, S381i, S386
S511, S511i, S511i-1, S512, S512i, S512i Salsa, S512-1, S514 Solaris, S514 Parketto, S516 Cat & Dog, S524 Deluxe, S524 Mercury
S524 Crystal, S528 Filtration Guard, S538 Monte Verde, S544 Aluminium, S558 Silver Moon, S558 Red Velvet, S571, S571-1
S700 Cat & Dog, S700 MedicAir, S700-1 Cat & Dog, S712/1, S718, S718-1, S726 Cat & Dog, S748, S758, S758 +
S4210 Comfort, S4210 Carina, S4210 Capella S4211, S4211 Parquet, S4212 Duoflex, S4212 Polaris, S4212 Neptune S4281 BabyCare, S4282 Eclipse, S4510 Premium, S4582 CleanAir, S4780 Deluxe, S4780 Orion,S4782 Deluxe, S4812 Hybrid
S6210, S6220, S6230, S6240, S6250, S6260, S6270, S6280, S6290
S6310, S6320, S6330, S6350, S6390
S6710, S6730, S6760, S6780
