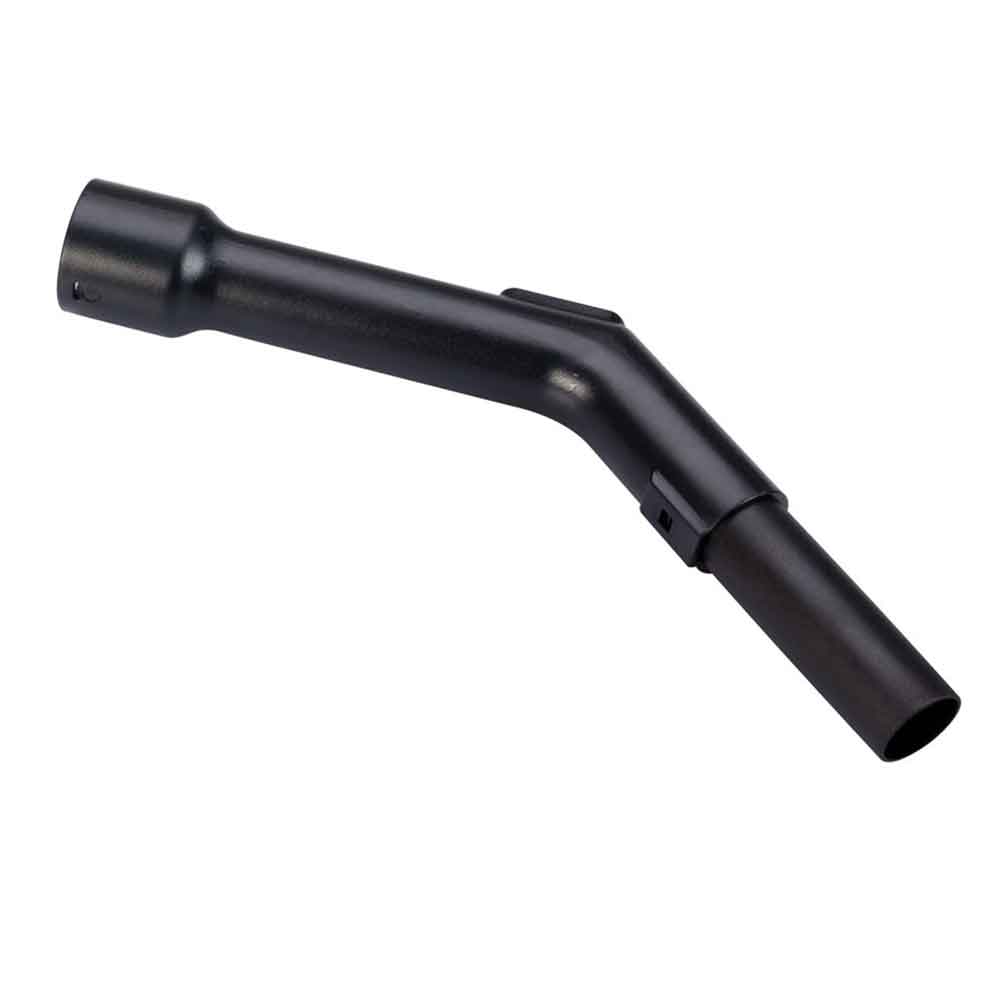

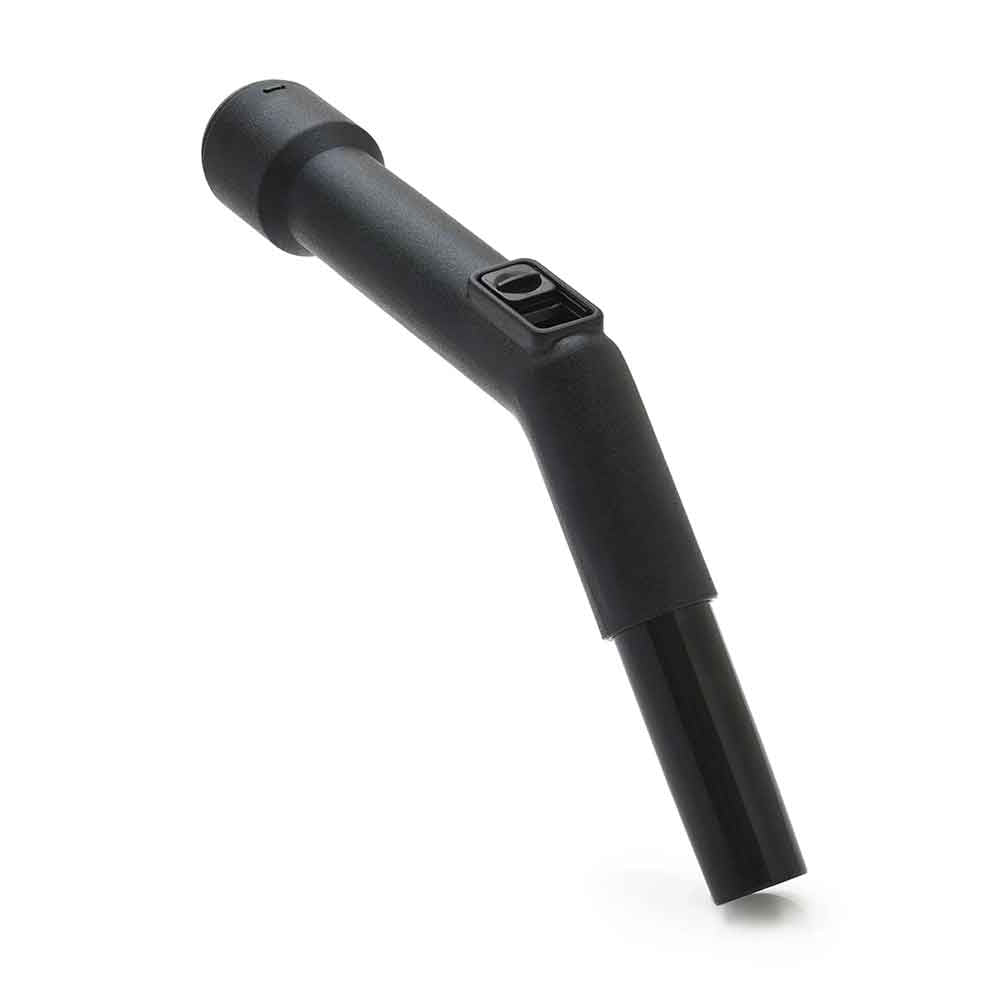

32mm Vacuum Hose Handle Bent End Piece with Click-Ring

32mm Vacuum Hose Handle with Click-Ring | Ergonomic Curved Replacement

This premium 32mm vacuum hose handle is a curved replacement piece designed specifically for hoses with click-ring fittings, commonly found on Vax, Hoover, and ducted vacuum systems. Featuring a secure locking mechanism, this component provides an airtight connection while restoring comfortable ergonomic handling.

What This Part Does

This handle acts as the essential bridge between your flexible 32mm vacuum hose and your metal extension rods. It connects your vacuum hose to extension rods while providing control and airflow adjustment.

Which Vacuum Cleaner Brands Use a 32mm Fitting?

This component features a 32mm external diameter (male fitting) to slide into your rods. Before ordering, please measure the Outside Diameter (OD) of your silver vacuum rod to confirm it is 32mm at the rod connection.

• Vax Vacuum Cleaners: Fits most of barrel corded models.
• Ducted Vacuum Systems: Fits 99% of brands including Valet, Aussie Vac, and Premier Clean.
• Commercial Backpacks: Fits standard 32mm models from Pacvac, Pullman, and Origin.
• Domestic Barrels: Compatible with selected 32mm models only from Hoover, Electrolux, Nilfisk, and Bosch (measure to confirm).
• Standard 32mm Hoses: Fits universal 32mm non-switched (non-electric) vacuum hoses.

Quick Feature Summary

• Ergonomic Geometry: Curved profile improves manoeuvrability and reduces wrist strain.
• Precision Seal: 32mm male connection creates an airtight friction-fit with standard rods.
• Mechanical Lock: Integrated click-ring provides a secure, wobble-free hose attachment.
• Rugged Build: High-impact plastic construction withstands heavy domestic and commercial use.
• Airflow Control: Built-in sliding bypass valve allows for instant suction adjustment.
• Universal 32mm Fit: Standardised sizing for wide compatibility across Australian vacuum brands.

When Should You Replace Your Vacuum Handle?

A damaged handle is the most common cause of suction loss. Replace your bent end piece if you notice the following:

• Visible Cracks: Air escaping through cracks in the plastic neck significantly reduces pickup power.
• Loose Connection: If your extension rods constantly fall off, the friction-fit taper has worn down.
• Broken Click-Ring: If the hose pulls out of the handle during use, the locking mechanism has failed.

Key Benefits of the 32mm Click-Ring Handle

• Eliminate Suction Leaks: Replacing a cracked handle ensures maximum motor power reaches the floor tool by sealing air loss at the primary junction.
• Simple DIY Installation: The click-ring system facilitates a straightforward repair, allowing you to salvage a damaged hose without professional assistance.
• Variable Airflow Control: A built-in sliding valve allows you to reduce suction immediately for cleaning high-pile rugs or delicate upholstery.
• Corrected Cleaning Posture: The specific bend angle ensures the floor tool stays flush with the ground while you maintain a natural, upright standing position.

Installation Guide: How to Replace Your Handle

Note: This process is for standard suction hoses designed with click-ring fittings only. Do not use on switch hoses containing internal electrical wiring.

• Remove Old Handle: Use a flat-head screwdriver to release the clips at the base of your current handle.
• Prepare the Hose: Unscrew the old cuff (clockwise) or carefully trim the hose end if it was factory-glued.
• Slide the Ring: Slide the new click-ring over the end of the flexible hose.
• Attach the Cuff: Screw the new adaptor cuff onto the hose (anti-clockwise) until tight.
• Secure the Handle: Insert the hose into the new handle and snap the click-ring into place until it locks firmly.

Common Questions About 32mm Bent End Pieces

• Q. Is 32mm the standard size for my ducted vacuum?
• A. Yes. 99% of Australian ducted systems (Valet, Aussie Vac, etc.) use 32mm. This is the correct replacement part.
• Q. How do I measure for a 32mm fit? A. Measure the Outside Diameter (OD) of the end of your vacuum rod. If it is 32mm, this handle will fit. If it is 35mm (width of a golf ball), this will be too small.
• Q. Will this fit my Miele vacuum? A. No. Miele vacuums use a larger 35mm fitting. This 32mm handle will not slide into Miele rods.
• Q. Does this handle include the flexible hose?
• A. No. This is the "Bent End Piece" (handle) only. It is designed to be fitted to your existing 32mm flexible vacuum hose.

Durable Construction: Crafted from high-quality materials, this handle ensures long-lasting performance and resilience in demanding cleaning tasks.
Ergonomic Design: The handle features a soft grip and convenient thumb-operated suction control, enhancing user comfort and control during use.
Universal Compatibility: Designed to fit vacuum hoses that uses 32mm tools, it includes a click ring and swivel connector, ensuring a secure and adaptable fit across various vacuum models.

32mm vacuum hose handle with click-ring is a curved replacement designed for ducted, Vax, and Hoover vacuum systems using standard 32mm fittings. It provides an ergonomic grip, secure hose connection, and adjustable airflow control to support consistent suction and comfortable cleaning performance.
