Replacement Roller Brush Bar for Dyson V11, Gen5 Detect & V15 Detect

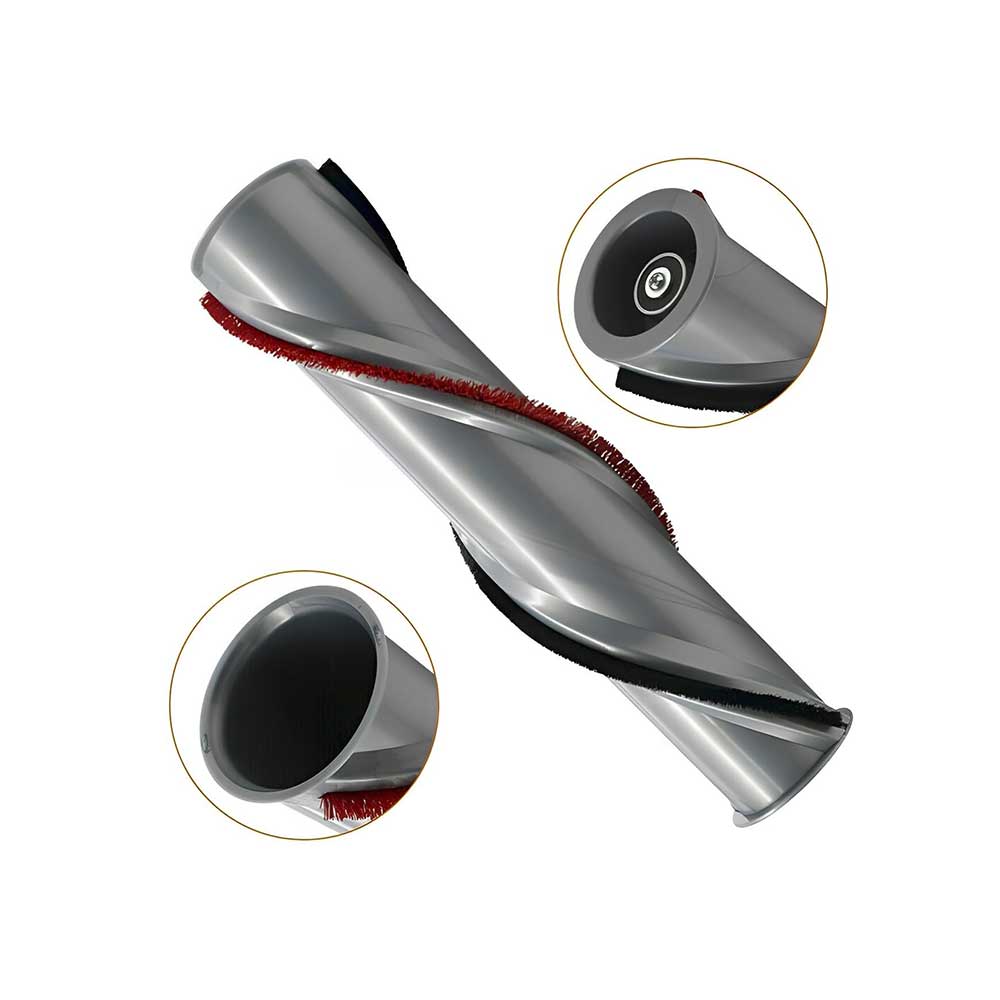

Replacement Brush Roller For Dyson V11, V15 & Gen5 Detect

High Torque Direct Drive Agitator Bar | Replaces 970135-01

If your premium Dyson vacuum is requiring multiple passes to clean your carpets or leaving visible lint and pet hair behind, your brush roller has likely reached the end of its lifespan. The Direct Drive High Torque cleaner head relies on this rotating brush bar to dig deep into carpet fibres and lift embedded dirt. Over time, the stiff nylon bristles flatten, wear down, and lose their sweeping effectiveness, which drastically reduces your vacuum's overall cleaning performance.

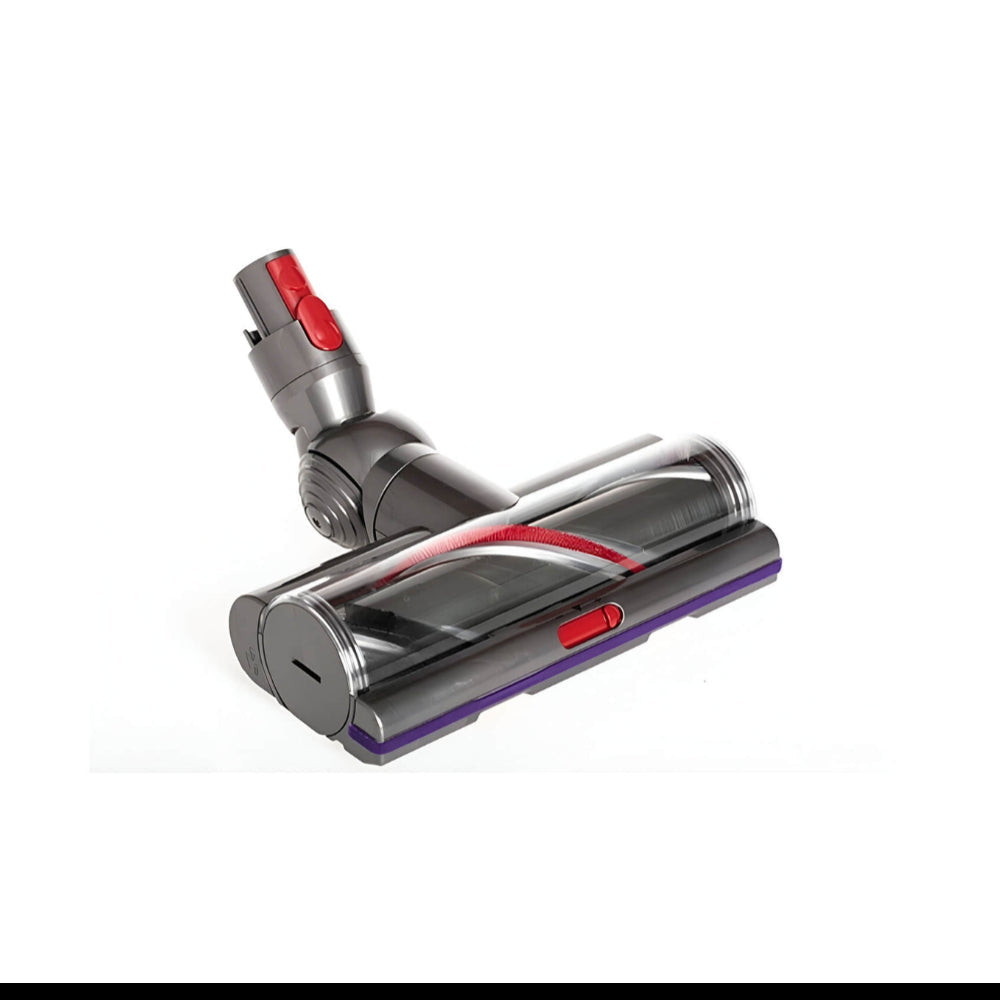

This Premium Compatible Brush Roller is engineered specifically for the Dyson V11, V15 Detect, and Gen5 Detect cordless vacuums fitted with the Direct Drive Torque cleaner head (easily identified by its distinctive copper or gold-coloured brush bar). By installing a brand-new, perfectly balanced roller, you instantly restore proper carpet agitation, maximize debris pickup, and ensure your vacuum's digital motor operates at peak efficiency.

Compatibility Guide For Dyson Vacuums

Please check the sticker on your vacuum's battery or main body to confirm your model. This replacement roller is designed strictly for the High Torque Direct Drive cleaner head used on the following platforms:

Supported Dyson Models

• Dyson V11 Torque Drive (All variants with the gold/copper roller)
• Dyson V15 Detect (High Torque cleaner head)
• Dyson Gen5 Detect (High Torque cleaner head)

Important Exclusions

(Note: Dyson uses many different floor heads across its range. This roller is NOT compatible with the Dyson V8 or V10 Direct Drive heads, as the internal drive shafts are different sizes. It is also NOT compatible with the "Laser Slim Fluffy" hard floor heads or the newer "Motorbar" heads featuring built-in plastic detangling combs. Please ensure your current roller features the matching copper/gold design before purchasing).

Kit Contents

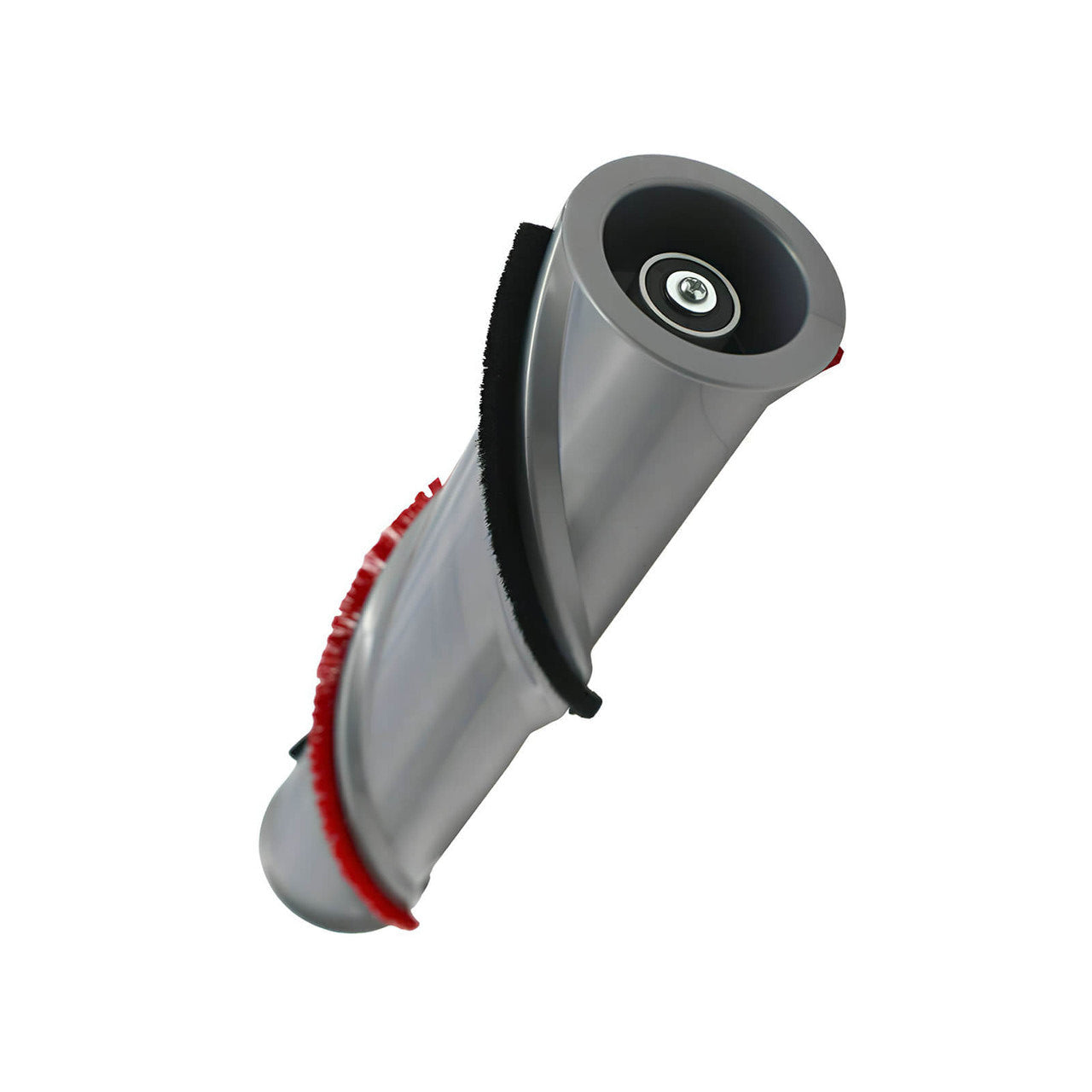

1. 1 x Replacement High Torque Brush Roller (Replaces Dyson Parts 970135-01, 970135-02, 970135-03, 971655-04)

Why Choose This Replacement Brush Roller?

• Restores Deep Cleaning Power: Fresh, stiff nylon bristles effectively separate carpet fibres to lift deeply embedded sand, dust mites, and pet hair that a worn brush leaves behind.
• Precision Balanced Design: Engineered to rotate smoothly at high speeds within the Torque cleaner head, reducing excessive vibration and maintaining optimal suction airflow.
• Cost-Effective Maintenance: Allows you to replace the worn internal agitator bar without spending hundreds of dollars on an entirely new Dyson floor head assembly.
• Protects Your Vacuum Motor: A worn or jammed brush forces your vacuum's motor to work significantly harder, draining your battery faster. A smooth-spinning replacement restores original energy efficiency.

How to Install the Replacement Dyson Roller

• Turn off your Dyson vacuum and disconnect the High Torque cleaner head from the main wand.
• Turn the cleaner head upside down so the base plate and brush are facing you.
• Use a standard coin (like a 20-cent piece) or a flathead screwdriver to turn and unlock the end cap located on the side of the cleaner head.
• Remove the end cap and carefully slide the old, flattened brush roller completely out of the housing.
• Slide the new replacement roller into the housing, ensuring the drive shaft lines up correctly with the internal motor.
• Reattach the end cap and turn it with your coin to lock it securely into the closed position.
• Reconnect the floor head to your vacuum and run a short 10-second test to confirm smooth, balanced rotation.

Frequently Asked Questions

• Q. How do I identify if this is the correct roller for my Dyson?
• A. The easiest way to identify the High Torque Direct Drive cleaner head on V11, V15, and Gen5 models is to look at the colour of the brush bar itself. This specific replacement is for the floor heads that utilize the copper or gold-coloured central brush bars.
• Q. Is this brush roller compatible with Dyson V10 or V8 vacuum cleaners?
• A. No. While the floor heads look very similar on the outside, the internal drive connections on the V11/V15/Gen5 platforms are structurally different from the older V8 and V10 models.
• Q. How often should the brush roller be replaced?
• A. Replacement intervals depend heavily on your home's environment (e.g., thick carpets and multiple pets cause faster wear). Generally, the roller should be replaced every 12 to 18 months, or as soon as you notice the bristles becoming significantly flattened, soft, or damaged.

Technical Specifications

• Product Type: Motorised Cleaner Head Brush Roller / Agitator Bar
• Compatibility: Dyson V11, V15 Detect, Gen5 Detect
• Cleaner Head Type: High Torque Direct Drive (Copper/Gold Bar)
• Replaces OEM Parts: 970135-01, 970135-02, 970135-03, 971655-04
• Material: Durable Nylon Bristles

Perfect Fit – Compatible with Dyson V11 Torque Drive and Torque Drive cleaner heads with copper or gold brush bars. Replaces part numbers 970135-01, 970135-02, 970135-03.
Easy to Replace – Quick and simple installation for effortless vacuum maintenance.
Powerful Cleaning – High-quality bristles pick up dust, dirt, and debris on carpets and hard floors.
Durable & Long-Lasting – Made from premium materials for reliable use.
Fresh Performance with Regular Replacement – Changing the brush bar as needed ensures strong suction and effective cleaning.

Dyson Gen5detect.
Dyson V15 Detect.
Dyson V15s Detect Submarine.
Dyson V11 Torque Drive ONLY.
