Replacement Brush Roller Agitator for Dyson V10 (SV12) Vacuum Cleaner

Replacement Brush Roller For Dyson V10 SV12

Direct Drive Agitator Bar | 3-Pin Connection System

If your Dyson V10 is struggling to pick up pet hair or leaving visible dirt behind on your carpets, a worn brush roller is the most likely culprit. The agitator bar inside your Direct Drive cleaner head spins at high speeds to separate carpet fibres and lift embedded debris. Over time, these stiff nylon bristles become flattened, soft, or damaged, causing your vacuum to lose its deep-cleaning effectiveness.

This Premium Compatible Brush Roller is engineered specifically for the Dyson V10 SV12 Direct Drive Cleaner Head. By replacing your worn or jammed roller, you immediately restore proper carpet agitation, allowing the vacuum to effortlessly sweep dirt, dust, and hair into the suction airflow. This simple maintenance step reduces the number of passes needed to clean your floors and prevents unnecessary strain on your vacuum's motor and battery.

Compatibility Guide For Dyson V10 Vacuums

Please check the silver sticker on the underside of your vacuum's battery to find your "SV" model number. This replacement brush features a 3-pin drive shaft connection and is exclusively designed for the following models:

Supported V10 SV12 Models

• Dyson Cyclone V10 Animal
• Dyson Cyclone V10 Animal Plus
• Dyson Cyclone V10 Absolute
• Dyson Cyclone V10 Motorhead

Important Exclusions

(Note: Dyson updated the V10 series later in its production run. This roller is NOT compatible with the newer Dyson V10 SV27 platform. Furthermore, it will NOT fit the newer "Motorbar" (Anti-Tangle) cleaner heads that feature plastic detangling combs inside the housing, nor will it fit the soft "Fluffy" hard floor roller heads. Please verify your machine is an SV12 with a standard Direct Drive head before purchasing).

Kit Contents

1. 1 x Replacement Direct Drive Brush Roller (3-Pin Connection)

Why Choose This Replacement Brush Roller?

• Restores Deep Cleaning: Stiff, durable nylon bristles effectively penetrate carpet fibres to lift deeply embedded dust, sand, and pet hair that a worn brush simply glides over.
• Maintains Airflow Efficiency: A correctly balanced roller ensures smooth, vibration-free rotation within the cleaner head housing, preventing blockages and maximizing suction power.
• Cost-Effective Maintenance: Allows you to replace just the internal agitator bar instead of purchasing an entirely new, expensive Direct Drive floor head assembly.
• Protects Your Motor: A jammed or heavily worn brush forces the digital motor to work harder, draining your battery faster. A fresh roller restores optimal energy efficiency.

How to Install the Replacement Dyson Roller

• Turn off the vacuum cleaner and disconnect the Direct Drive cleaner head from the main wand.
• Turn the cleaner head upside down so the base plate is facing you.
• Use a standard coin (like a 20-cent piece) or a wide flathead screwdriver to turn and unlock the end cap on the side of the cleaner head.
• Remove the end cap and carefully slide the old, worn brush roller out of the housing.
• Slide the new replacement roller into the housing, ensuring the 3-pin drive shaft lines up and seats correctly.
• Reattach the end cap and turn it with your coin to lock it securely into the closed position.
• Reconnect the head to your vacuum wand and run a short test to confirm smooth rotation.

Frequently Asked Questions

• Q. My cleaner head has completely stopped spinning. Will this fix it?
• A. If the brush has stopped spinning entirely, it could be due to a severely jammed roller (often caused by tightly wound hair), or the internal drive motor inside the floor head may have failed. We recommend removing the current roller and cleaning it first. If it still won't spin, replacing the roller is the most cost-effective diagnostic step before replacing the entire head.
• Q. Will this fit my Dyson V8 or V11?
• A. No. While the Direct Drive heads across different Dyson models look almost identical from the outside, the internal drive shaft connections (like the 3-pin system on the SV12) are different sizes. This specific roller is strictly for the V10 SV12.
• Q. Do I need any special tools for installation?
• A. No special tools are required at all. The locking mechanism on the side of the Dyson cleaner head is specifically engineered to be opened easily with a standard household coin

Technical Specifications

• Product Type: Motorised Cleaner Head Brush Roller / Agitator Bar
• Compatibility: Dyson V10 SV12 Direct Drive Head Only

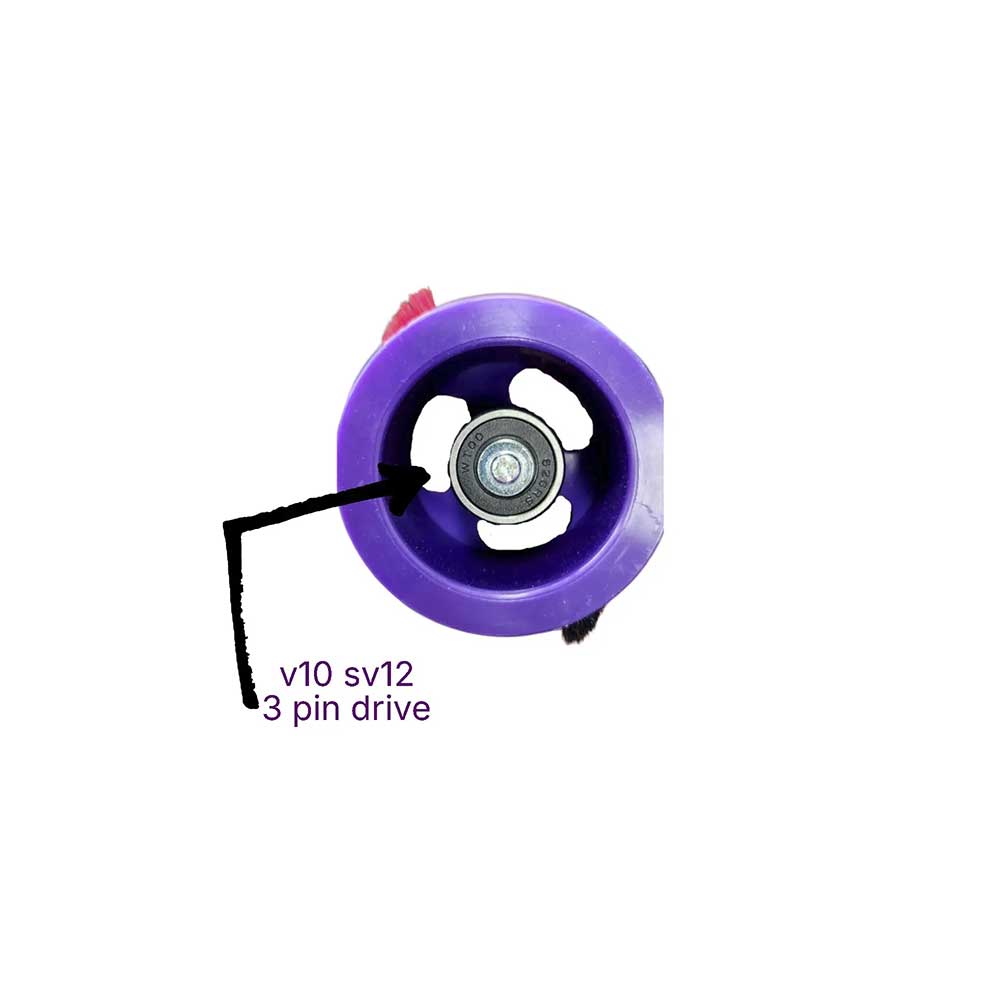

• Connection Type: 3-Pin Drive Shaft
• Bristle Material: Durable Nylon
• Function: Carpet agitation and hard floor sweeping

Perfect Fit – Compatible with Dyson Cyclone V10 Animal, Animal+, Motorhead, and Absolute (SV12).

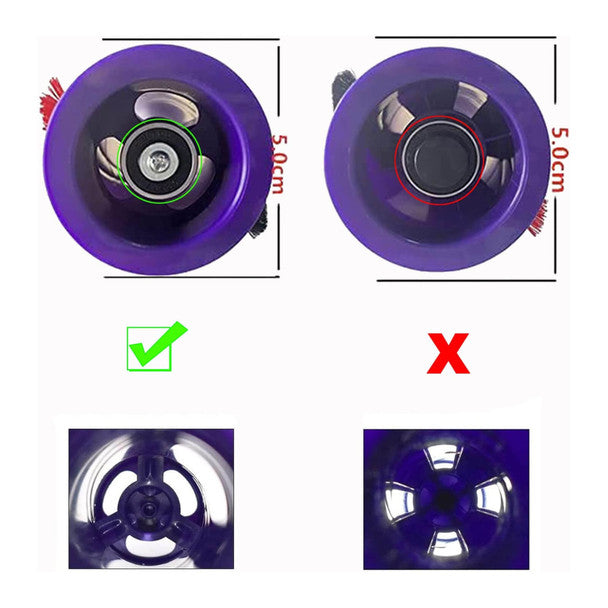

3-Pin Design – Please check product images to confirm compatibility with your vacuum.
Effective Cleaning – Durable bristles ensure strong dirt pickup on all floor types.
Easy to Replace – Simple removal and installation for hassle-free maintenance.
Important Notice – Not suitable for Dyson SV27 models with anti-tangle brush bars. Designed for older SV12 models with Direct Drive cleaner heads.

Dyson Cyclone V10 Animal
Dyson Cyclone V10 Animal+
Dyson Cyclone V10 Motorhead
Dyson Cyclone V10 Absolute
NOT SUITABLE FOR DYSON SV27 MODELS WITH ANTI TANGLE BRUSH BAR.
